ACT - M 1 0 2 1 Compact Electric Screwdriver Power Controller With TFT LCD Monitor

Brand Name : AND

Model Number : ACT - M 1 0 2 1

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Packaging Details : Paper Box

Delivery Time : 1-4 weeks

Payment Terms : Before T/T ; L/C

Name : ACT series Controller

Screwdriver type : Machine load

Power : 100W

Max . speed (rpm) : depends on the screwdriver

User interface : IO+RS485

C ustom : no custom

Positioning device : P: Bui lt- i n positioning device L: Distribution balance a rm port, but no positioning device None: No positioning device

Contact Now

compact configuration convenient flexible installation touch screen ACT series screwdriver controller

ACT Series

Controller
With TFT-LCD monitor, it is able to display the setting, programming, and status of the machine.
12 task modes that can be used for multiple assembly requirements
Up to 8 different torque parameter settings per task
Built-in servo driver can provide precise control of torque, corner monitoring and deceleration
tightening
Programmable IO and system extension components for process control
Communication interface for advanced data storage and factory control interactions
Dual operation and monitoring functions, such as physical button and LED indicator light, to further
improve the reliability of the controller
Beautiful and compact configuration, convenient and flexible installation, suitable for many applications

ACT - M 1 0 2 1 Compact Electric Screwdriver Power Controller With TFT LCD Monitor

Specifications

Model	ACT-M/H 0XX1	ACT-M1/2XX1	ACT-M3/4XX1	ACT-M5XX1

Input voltage	1∅AC200～230V±10%50/60HZ
No-load consumption【1】	<20W	<15W		<30W
Output power【2】	40W	100W/150W	200W/400W	750W
Display (Operation interface)	① TFT-LCD,Touch Screen support		② 3 function buttons+3 LED indicators
Torque accuracy	Within the maximum output torque range≤3δ±5%,else≤3δ±8%
The smallest unit of twist angle display	1degree(1°)
Tightening method	● Torque as priority (angle simultaneous monitoring secondly)		● Angle as priority (torque simultaneous monitoring secondly)
IO channel	8_CH Optocoupler isolated input(20mA/CH,Max) , 8_CH relay contact output(3A/CH, Max)
Communication interface【3】	①RS232 ②RS485 ③CANopen ④Ethernet ⑤EtherCAT
Recommended use environment	Temperature -10 °C ～ +60 °C, humidity <90% RH (no condensation)
Storage environment	Temperature -20 °C ～ +85 °C, humidity <90% RH (no condensation)
Weight	about 5.5kg

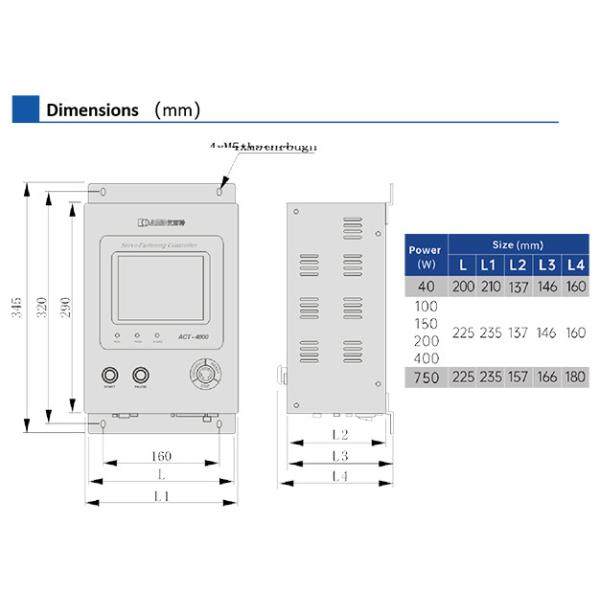

Dimensions【4】	Please refer to"Dimensions"

[1] No-load consumption refers to the power consumption of the controller itself when the screwdriver body is not connected.
[2]The output power refers to the maximum output power of the internal servo drive of the controller, which matches the mounted servo motor.
[3]For the configuration of the communication interface, please refer to the product selection table.
[4]The external dimensions are the maximum appearance of the controller itself when erected and in front of your view.
