MD2351 DC 40W Smart Screwdriver Leading Servo Motor Drive CE Certification

Brand Name : AND

Model Number : MD2351

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : Before T/T ; L/C

Delivery Time : 1-4 weeks

Packaging Details : Paper Box

Name : Machine L 1 oad Smart Screwdrivers

The power of motor : DC 40W

Max. speed (rpm) : 1200

Rated torque（N.m) : 0.9

Batch Head : Hexagon (Hex)（6.35mm）

Contact Now

Machine-loading Smart Screwdriver MD2351 CE certification, can export to the EU and other countries which recognize CE

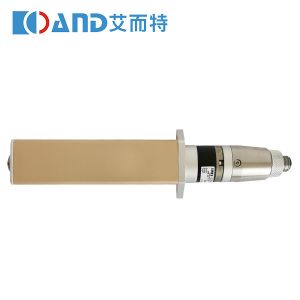

MD2351 Machine-loading Smart Screwdriver
- Professional concept of modular and combined design solution
- Leading servo motor drive plus precision reduction structure
- Blow/suction optional automatic feeding method
- Safe and reliable special cable and connector configuration
- Multi-style, multi-series and multi-specification product selection
- Beautiful and compact appearance structure, convenient and flexible installation method and suitable for a variety of applications

This is MD2350's Hex screwdriver bits adapted model.

It has the same spcs with model MD2350. (Which are 0.15~0.90 N.m, 1200 rpm max and 0.7 kg)

The compatible controller are the same as well. ( ACT series controller model M01** and HNA series controller model M23*** )

Dimensions(mm)
MD2351 DC 40W Smart Screwdriver Leading Servo Motor Drive CE Certification

Dimensions

Model	Adapted controller	Tool cable	Torque output range			Maximum Speed (rpm)	Weight (kg)	Applicable batch head	Adapted outer diameter of screw(mm)
			kgf.cm	N.m	lbf.in
MD2120	ACT-M00XX HNA-M21XX	C112X	0.20～2.35	0.02～0.23	0.18～2.04	5000	0.5	Tail	1.0～2.0
MD2121								Hex(6.35mm)
MD2350	ACT-M01XX HNA-M23XX		1.52～9.18	0.15～0.90	1.33～7.97	1200	0.7	Tail	2.0～3.0
MD2351								Hex(6.35mm)
MD2460	ACT-M02XX HNA-M24XX		2.00～12.23	0.20～1.20	1.77～10.62	1000	0.7	Tail	2.0～4.0
MD2461								Hex(6.35mm)
MD5151	ACT-M10XX	C212X	2.04～9.18	0.20～0.90	1.77～7.97	5000	1.0	Hex(6.35mm)	1.8～3.0
MD5152								Hex(4mm)
MD5381	ACT-M11XX		8.16～30.60	0.80～3.00	7.08～26.55	1200	1.3	Hex(6.35mm)	2.5～5.0
MD5382								Hex(4mm)
MD5601	ACT-M14XX		10.20～66.28	1.00～6.50	8.85～70.80	600	1.5	Hex(6.35mm)	4.0～6.0
MD6161	ACT-M20XX		3.06～13.26	0.30～1.30	2.66～11.50	5000	1.1	Hex(6.35mm)	2.0～4.0
MD6162								Hex(4mm)
	ACT-M21XX		10.20～45.90	1.00～4.50	8.85～39.83	1200	1.4	Hex(6.35mm)	3.0～6.0
MD6392								Hex(4mm)
MD6601	ACT-M24XX		40.80～102.00	4.00～10.00	35.40～88.50	600	1.7	Hex(6.35mm)	4.0～8.0
MD6701	ACT-M27XX		71.30～153.00	7.00～15.00	61.90～132.00	300	1.9	Hex(6.35mm)	6.0～10.0

MD2351 DC 40W Smart Screwdriver Leading Servo Motor Drive CE Certification
